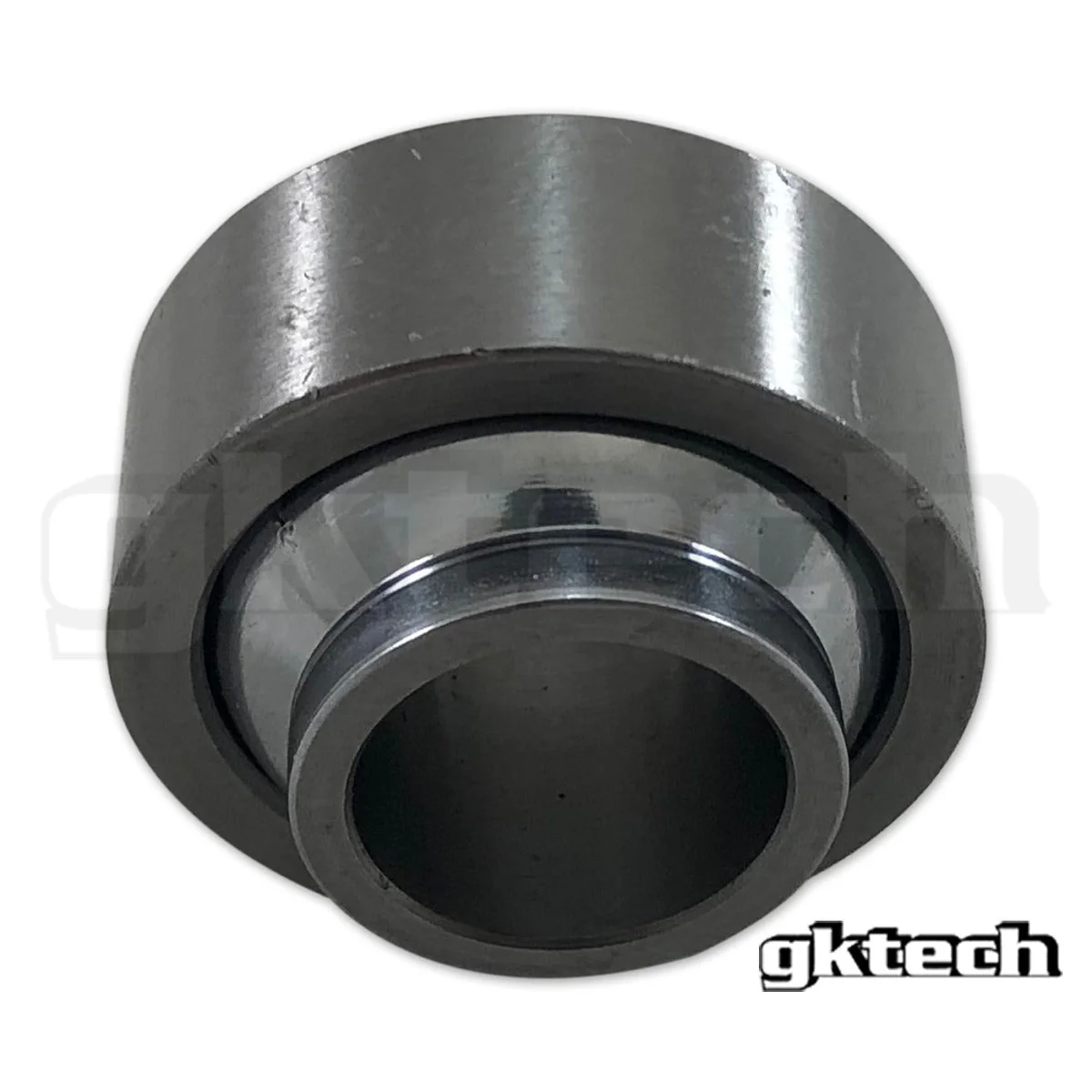

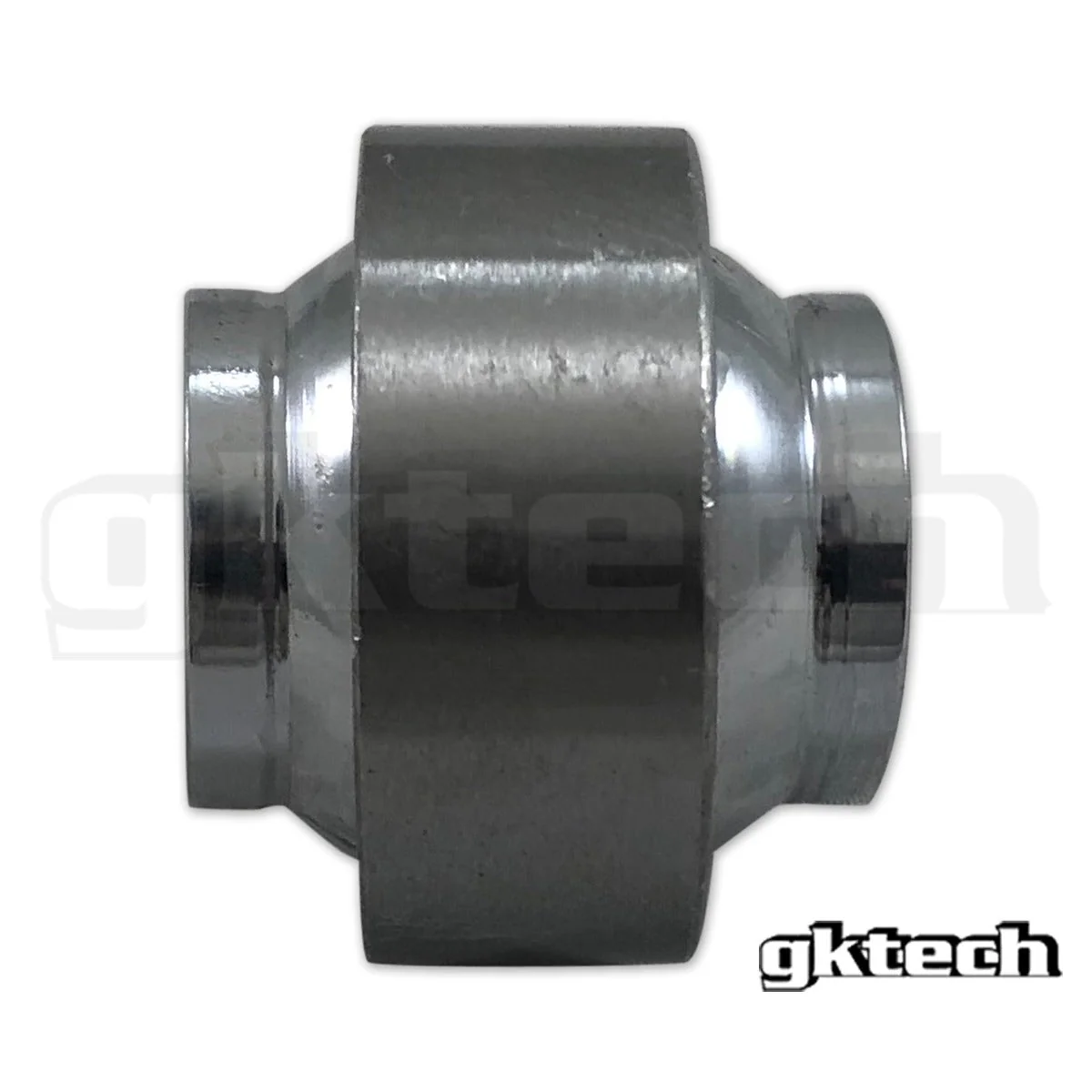

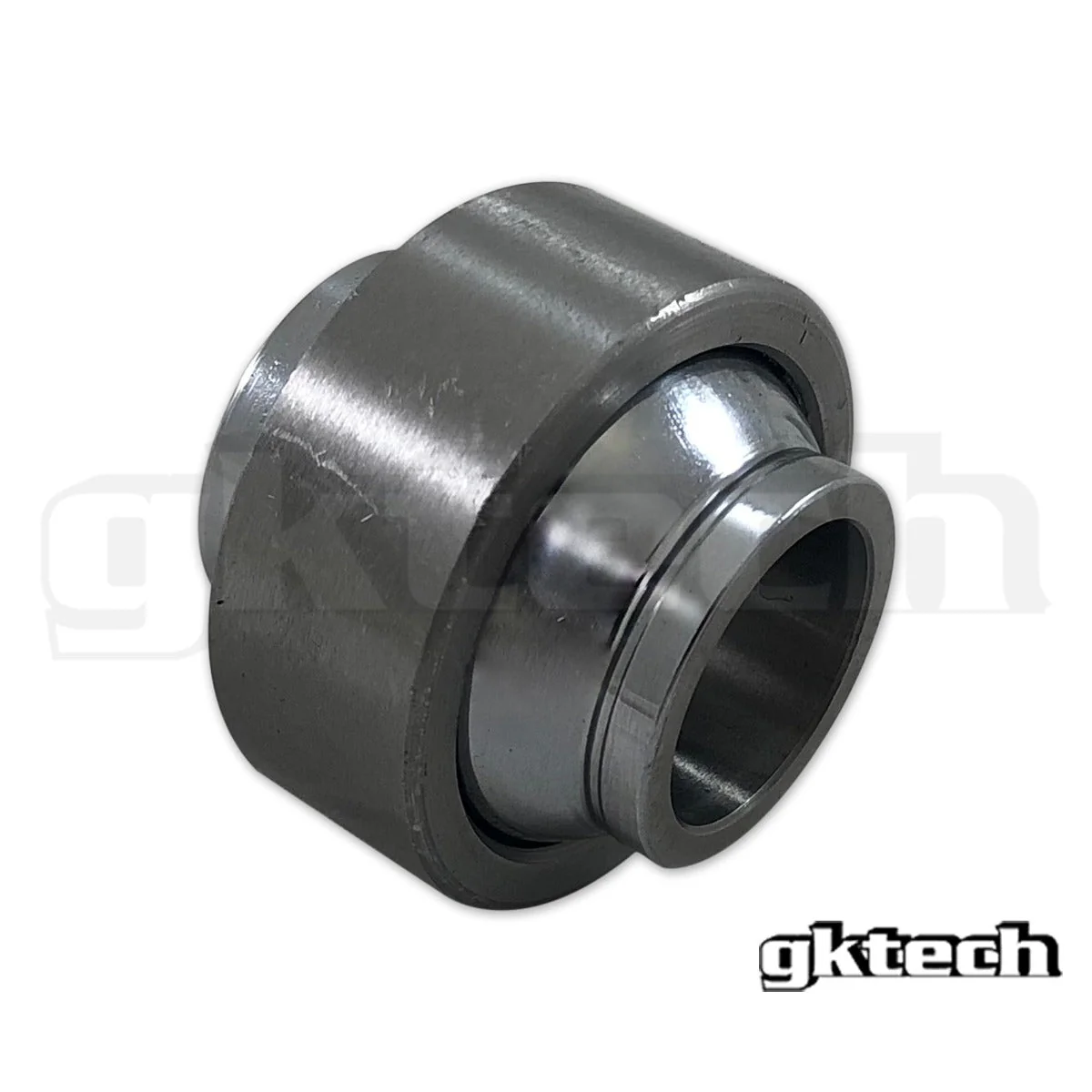

Replacement YPB6T Spherical bearing
Replacement YPB6T Spherical bearing used in the following products;
Premium sperical swaybar front end links, as seen here: https://us.gktech.com/premium-spherical-swaybar-front-end-links - PRMM-ENDL
Sold Individually
YPB6T
| IMPERIAL | METRIC |
|---|---|
| HOUSING OUTER DIAMTER | HOUSING OUTER DIAMTER |
| 0.9060 in | 23.0124 mm |
| HOUSING WIDTH | HOUSING WIDTH |
| 0.3450 in | 8.7630 mm |
| BALL WIDTH | BALL WIDTH |
| 0.8130 in | 20.6502 mm |
| BALL BORE SIZE | BALL BORE SIZE |
| 0.3750 in | 9.5250 mm |
| BEARING MISALIGNMENT ANGLE | BEARING MISALIGNMENT ANGLE |
| 23 degrees | 23 degrees |
| ULT. Static Radial Load (lbs) | ULT. Static Radial Load (kg) |
| 16,975 lbs | 7,700 kg |
| BEARING MATERIAL | BEARING MATERIAL |
| STAINLESS STEEL | STAINLESS STEEL |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
$18.00
